The FX5030C is a dual-energy X-ray baggage scanner for handbags, briefcases, parcels and express items. Each scan produces a high-energy and a low-energy image at the same time; the scanner compares the two, classifies material by atomic number and displays the result in 4-colour or 7-colour mode. Operators can therefore separate organic, inorganic and metallic objects at a glance instead of judging a single grey image.
Courts and procuratorates, public security bureaus, government buildings, hotels, schools, logistics and express sorting hubs, and airport secondary screening points — anywhere hand-carried bags and small parcels have to be checked without opening them.
It scans at two energy levels and compares the attenuation of each. Organic materials (food, paper, plastics), inorganic materials (glass, ceramics) and metals then appear in distinct colours, so a dense but harmless item is not confused with a threat.
Yes. Logo, SKD (semi-knocked-down) supply and packaging can be customised for OEM and distributor projects; tooling and lead time are quoted per order.
CE, RoHS and FDA, plus approval from the China Ministry of Public Security.
Configuration depends on tunnel size, belt load and options, so units are quoted per project. Send the application, throughput and destination country through the contact page for a quotation.
Introduction

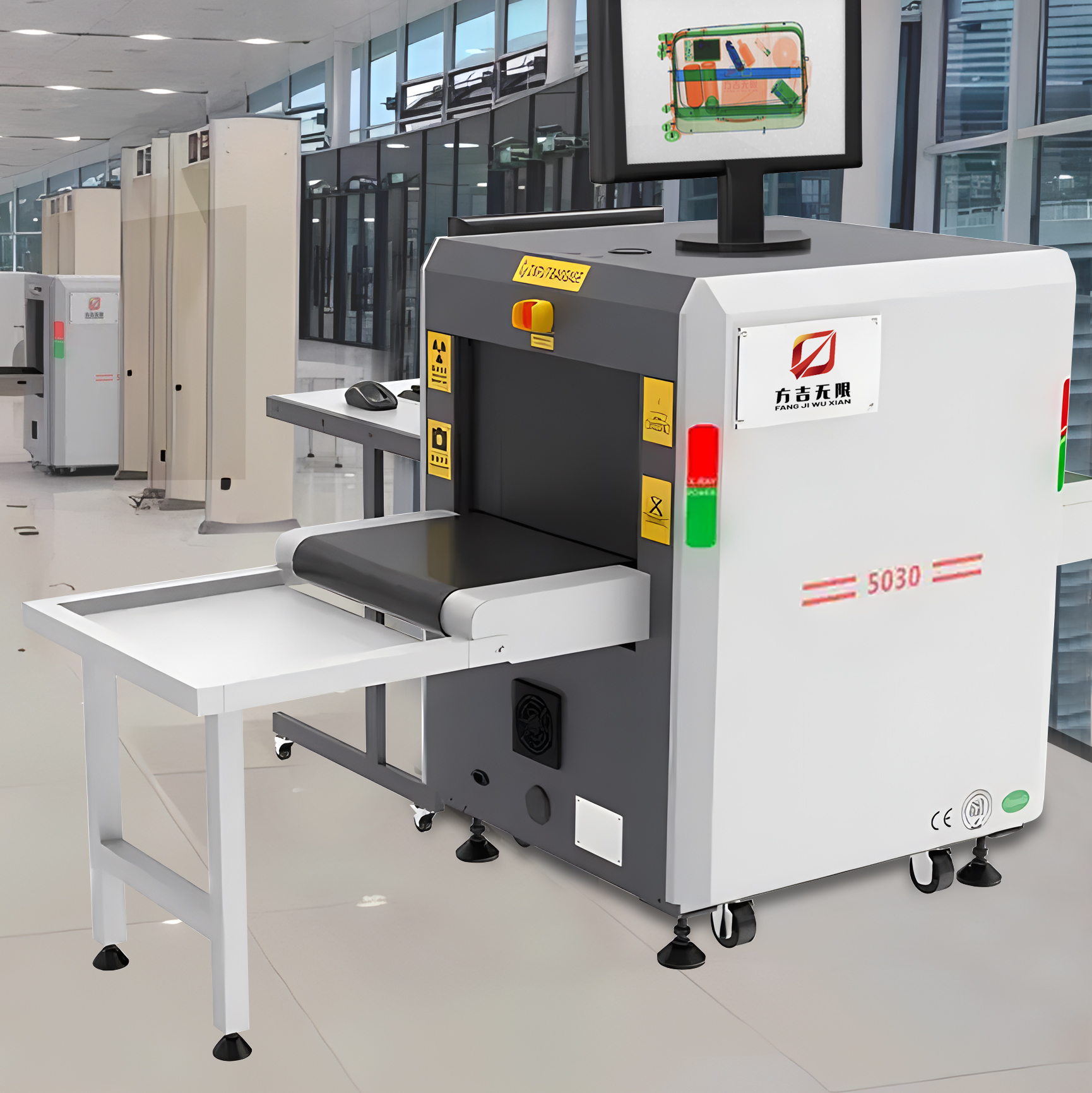

Fangji® FX5030C X-ray Security Scanner is a dual-energy X-ray inspection device developed and manufactured by Fangji Infinite Technology Co., Ltd. Ideal for the security screening of handbags, briefcases, parcels, express items and small packages, it is widely used in logistics, courts, procuratorates, public security bureaus, government agencies and other key locations. Designed to meet industry requirements and integrated with advanced industrial design concepts, the scanner features a sleek and elegant appearance, along with easy installation and mobility.
Core features
1. Dual-energy technology
2. Low radiation dose
3. Switchable 4/7-color 3D imaging mode
4. Stainless steel extension frame
5. Cloth-patterned conveyor belt
6. DC brushless motor
7. Industrial-grade waterproof keyboard
8. Self-developed rotating display bracket (supports touch screen installation with stable operation without shaking)
9. Energy conservation and environmental protection
10. Material classification and identification
11. Automatic login and image saving
12. Customizable logo, SKD and packaging solutions
13. 3D imaging technology
14. Certified with CE, RoHS, China Ministry of Public Security, and FDA approvals
Technical Reference
