The FX10080C is a dual-energy X-ray scanner for oversized luggage and palletised freight. It combines 0.8 mm spatial resolution with 32–40 mm steel penetration, so operators can inspect dense or pallet-loaded consignments at logistics and customs checkpoints without breaking the load down.
Air cargo terminals, customs bonded warehouses, courier hubs, pallet and roll-cage screening at distribution centres, and large-event freight checks.
Yes. The 10080C is the pallet-class model: the tunnel accepts oversized loads, so a pallet can be screened without unloading it first.
Throughput depends on belt speed and load pattern; the factory quotes a belt-speed figure with each configuration.
The conveyor and I/O can be specified for line integration; the exact interface is agreed at quotation.
Introduction

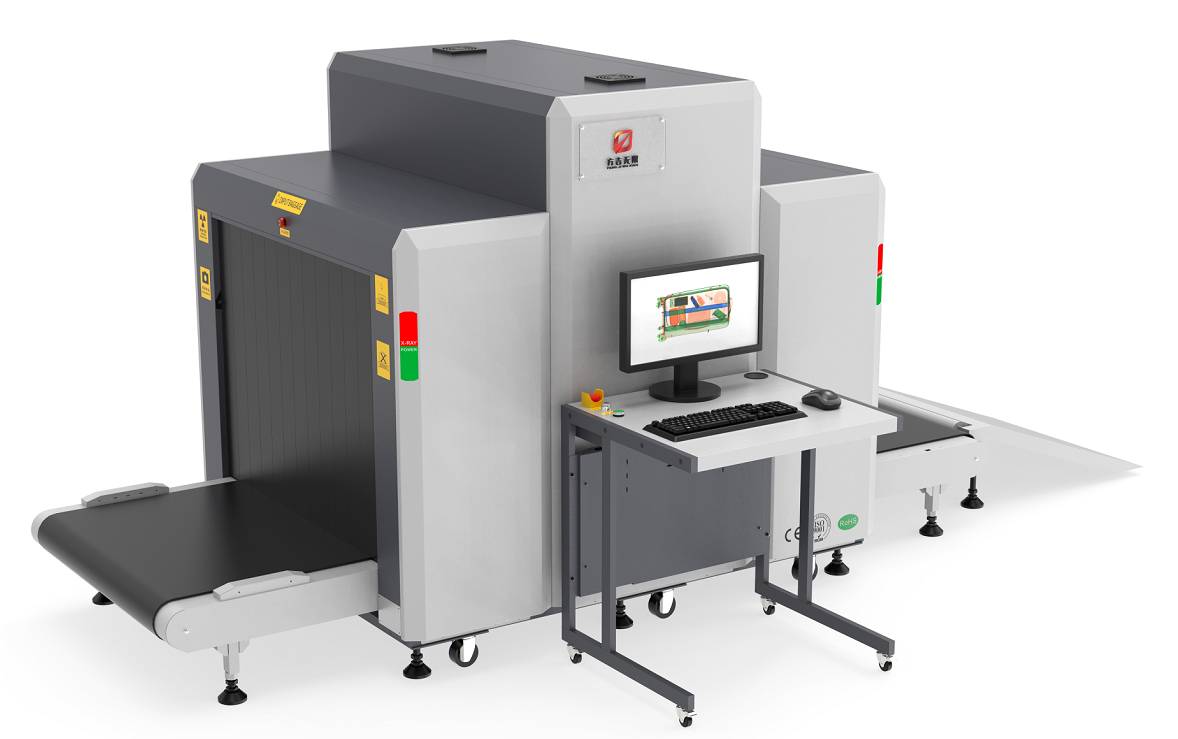

Fangji® FX10080C X-ray Security Scanner is a dual-energy X-ray inspection device developed and manufactured by Fangji Infinite Technology Co., Ltd. Ideal for the security screening of large packages in airports, customs and logistics sectors, it features a design that incorporates industry-specific requirements and advanced industrial design concepts. The scanner boasts a sleek, elegant appearance as well as easy installation and mobility.
Core features
1. Dual-energy technology
2. Low radiation dose
3. Switchable 4/7-color 3D imaging mode
4. Stainless steel extension frame
5. Cloth-patterned conveyor belt
6. DC brushless motor
7.
l Wire detection capability: 0.052mm AWG40 (Standard)
l Wire penetration: 0.203mm AWG34 (Standard), 0.127mm AWG36 (Typical)
l Spatial resolution: 0.8mm horizontal, 0.8mm vertical
l Steel penetration: 32mm or 36mm steel (Standard), 36mm or 40mm steel (Typical)
8. Self-developed rotating display bracket (supports touch screen installation with stable operation without shaking)
9. Energy conservation and environmental protection
10. Material classification and identification
11. Automatic login and image saving
12. Customizable logo, SKD and packaging
13. Certified with CE, RoHS, China Ministry of Public Security, and FDA approvals
