The FX10080D is the dual-view version of the 10080 class: a large tunnel for oversized luggage and cargo, imaged from two angles in a single pass. Dense or pallet-loaded consignments can be inspected without breaking them down or re-orienting them.
Air cargo terminals, customs bonded warehouses, courier hubs, pallet screening at distribution centres and freight forwarders.
Yes — the large tunnel and dual-view geometry are intended for cargo that is impractical to unload or re-orient.
A second view per scan, which matters when freight is stacked and objects overlap in one projection.
Conveyor interfaces and I/O can be specified during quotation; the exact integration is agreed per project.
Introduction

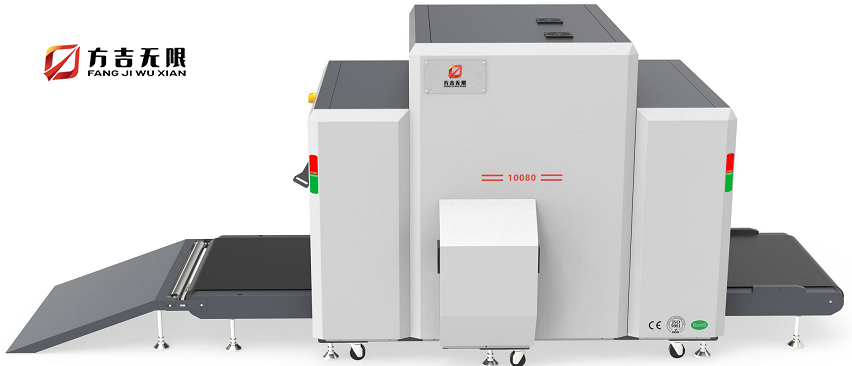

Fangji® FX10080D X-ray Security Scanner is a dual-energy X-ray inspection device developed and manufactured by Fangji Infinite Technology Co., Ltd. Ideal for the security screening of large packages in airports, customs and logistics sectors, it features a design that incorporates industry-specific requirements and advanced industrial design concepts. The scanner boasts a sleek, elegant appearance as well as easy installation and mobility.
Core features
1. Dual energy & Dual view
2. Low radiation dose
3. Switchable 4/7-color 3D imaging mode
4. Stainless steel extension frame
5. Cloth-patterned conveyor belt
6. DC brushless motor
7.
l Wire detection capability: 0.052mm AWG40 (Standard)
l Wire penetration: 0.203mm AWG34 (Standard), 0.127mm AWG36 (Typical)
l Spatial resolution: 0.8mm horizontal, 0.8mm vertical
l Steel penetration: 32mm or 36mm steel (Standard), 36mm or 40mm steel (Typical)
8. Self-developed rotating display bracket (supports touch screen installation with stable operation without shaking)
9. Energy conservation and environmental protection
10. Material classification and identification
11. Automatic login and image saving
12. Customizable logo, SKD and packaging
13. Certified with CE, RoHS, China Ministry of Public Security, and FDA approvals
Technical Reference
